詳細介紹 / Details

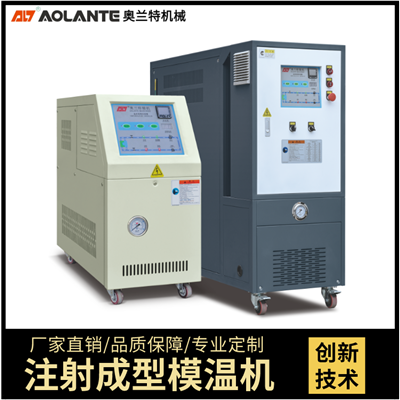

水式模溫機性能特點：
管路防爆裝置
Explosion-proof equipment for pipelines
深圳水溫機具有吹氣回水功能
Air blowing and return water function
回水溫度顯示表
Thermometer for return water
水溫機有開機自動排氣功能
Automatic air-exhausting function after startup
加熱功率切換功能
Switchover of heating power
即時冷卻關機功能
Instant cooling return oil shut-down function
隔離式電器控制箱. 延長電器使用年限
Isolated electric box for longer services lives of electric appliances
RS485通訊功能,實現自動化管理.(選購)
RS485 communication function for automated management (optional)
熱水BY-PASS泄壓回路
BY-PASS pressure release loop for hot water
多點溫度控制機組可訂作
Customizable multi-point temperature control unit
水泵馬力和加熱功率可訂作
Customizable horsepower and heating power of oil pump
電器采用OMRON. FUJI. TE. LG
Brands OMRON, FUJI, TE and LG for electric appliances
水溫機的溫度控制范圍: 進水溫+15℃→120℃
Range of temperature control: +15℃→120℃ for incoming water
304不銹鋼一體管路,減少管阻及銹垢
304 stainless steel integrated pipelines for less pipe resistance and rust
控制方式: 采用進口微電腦或(選購)PLC控制
Control mode: imported microcomputer or PLC (optional)
安全保護完善,故障顯示, 維修.保養無需專業人員
Perfect safety protection, fault display, easy repair and maintenance even without professionals
標準水溫機型號：NS
|
模型Model |
單位UNIT |
TWP-05 |
TWA-05M |
TWP-10 |
TWA-10M |
TWP-20 |
TWP-30 |
|
溫控范圍 Control range |
℃ |
120℃ |
|||||
|
溫控精度Temp.control accuracy |
℃ |
PID±1℃ |
|||||
|
電源 Power supply |
|
AC 3φ380V50HZ（or other)或其它 |
|||||
|
傳熱媒體 Heat.transfer medium |
|
水 Water |
|||||
|
冷卻方式 Cooling method |
|
直接冷卻Direct cooling（間接冷卻可定制） |
|||||
|
加熱能量Heating capacity |
KW |
6 |
6 |
9 |
9 |
12 |
12 |
|
泵浦馬力（功率）Horsepower of Pump |
HP/KW |
0.5/0.37 |
0.5/0.37 |
1/0.75 |
1/0.75 |
2/1.5 |
3/2.2 |
|
泵浦工作流量 Working flow of pump |
L/MIN |
98 |
40 |
165 |
60 |
135 |
315 |
|
泵浦工作壓力Working pressure of pump |
KG/C㎡ |
2 |
2.5 |
2.2 |
2.2 |
2.4 |
3.2 |
|
大電力消耗Maximum power consumption |
KW |
6.5 |
6.5 |
10 |
10 |
11 |
12 |
|
警報功能 Alarm function |
|
缺相/缺水/超溫/過載/反轉 |
|||||
|
冷卻水配管Cooing water pipework |
INCH |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
|
循環水配管Circulating water pipework |
INCH |
3/8x2 |
3/8x2 |
3/8x4 |
3/8x4 |
3/8x4 |
(3/8x4)x4 |
|
外型尺寸LxWxH |
MM |
750x320x70 |
750x320x670 |
780x320x670 |
780x320x670 |
780x320x670 |
780x320x670 |
|
重量 Weighht |
KG |
70 |
70 |
80 |
80 |
92 |
95 |
|
以上規格如有變更，恕不另行通知，特殊規格及多機一體機型可定制。Special design upon request |
|||||||
