詳細介紹 / Details

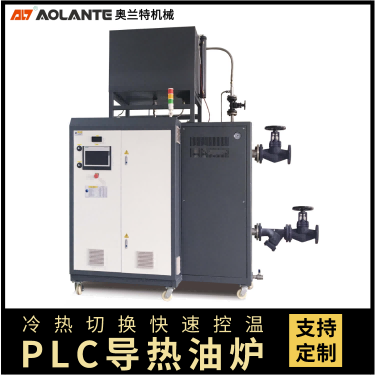

導熱油電加熱器是一種節能環保、安全的電加熱油鍋爐，加熱功率可以達到1000KW.
特 點:
Features
管路防爆裝置
Explosion-proof equipment for pipelines
吹氣回油功能
Air blowing and return oil return function
回油溫度顯示表
Thermometer for return oil
開機自動排氣功能
Automatic air-exhausting function after startup
加熱功率切換功能
Switchover of heating power
負壓系統運轉(選購)
Negative-pressure system (optional)
RS485通訊功能，實現自動化管理(選購)
RS485 communication function for automated management (optional)
即時冷卻關機功能(選購)
Instant cooling return oil shut-down function
隔離式電器控制箱，延長電器使用年限
Isolated electric box for longer services lives of electric appliances
熱油BY-PASS泄壓回路
BY-PASS pressure release loop for hot oil
多點溫度控制機組可訂作
Customizable multi-point temperature control unit
油泵馬力和加熱功率可訂作
Customizable horsepower and heating power of oil pump
電器采用OMRON. FUJI. TE. LG.
Brands OMRON, FUJI, TE and LG for electric appliances
溫度控制范圍: 進水溫+25℃→300℃
Range of temperature control: +25℃→450℃ for incoming water
304不銹鋼一體管路,減少管阻及銹垢
304 stainless steel integrated pipelines for less pipe resistance and rust
控制方式: 采用進口微電腦或(選購)PLC控制
Control mode: imported microcomputer or PLC (optional)
安全保護完善,故障顯示, 維修.保養無需專業人員
Perfect safety protection, fault display, easy repair and maintenance even free of professionals
|
模型Model |
單位UNIT |
TOB-180 |
TOB-200 |
TOB-240 |
TOB-280 |
TOB-320 |
TOB-360 |
|
|
溫控范圍 Control range |
℃ |
300℃ |
||||||
|
溫控精度 Temp.control accuracy |
℃ |
PID±1℃ |
||||||
|
電源 Power supply |
|
AC 3φ380V50HZ（or other)或其它 |
||||||
|
傳熱媒體 Heat.transfer medium |
|
導熱油CEAT TRANSFER OIL |
||||||
|
冷卻方式 Cooling method |
|
間接冷卻INDIRECT C00LING |
||||||
|
加熱能量Heating capacity |
KW |
180 |
200 |
240 |
280 |
320 |
360 |
|
|
泵浦馬力（功率）Horsepower of Pump |
HP/KW |
10/7.5 |
10/7.5 |
15/11 |
20/15 |
20/15 |
30/22 |
|
|
泵浦工作流量 Working flow of pump |
L/MIN |
500 |
500 |
700 |
1000 |
1000 |
1700 |
|
|
泵浦工作壓力Working pressure of pump |
KG/C㎡ |
5.0 |
5.0 |
5.0 |
6.0 |
5.5 |
5.5 |
|
|
大電力消耗Maximum power consumption |
KW |
188 |
208 |
252 |
295 |
335 |
388 |
|
|
警報功能 Alarm function |
|
缺相/缺油/超溫/過載/反轉 |
||||||
|
冷卻水配管Cooing water pipework |
INCH |
1 |
1 |
1 |
1 |
1 |
1 |
|
|
循環油配管Circulation oil pipe |
INCH |
DN40 |
DN40 |
DN50 |
DN50 |
DN50 |
DN65 |
|
|
外型尺寸 LxWxH |
MM |
2000x600x1600 |
2000x600x1600 |
|
|
|
|
|
|
重量 Weighht |
KG |
/ |
/ |
/ |
/ |
/ |
/ |
|
